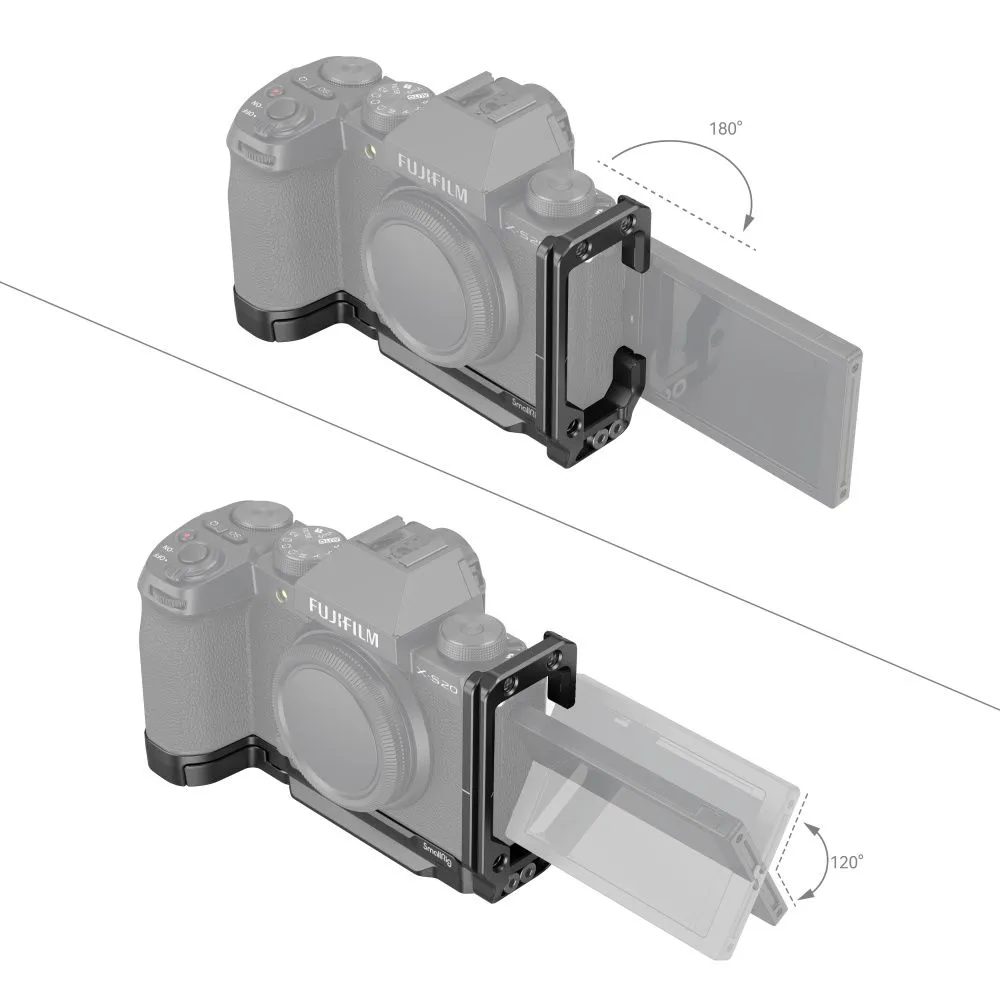

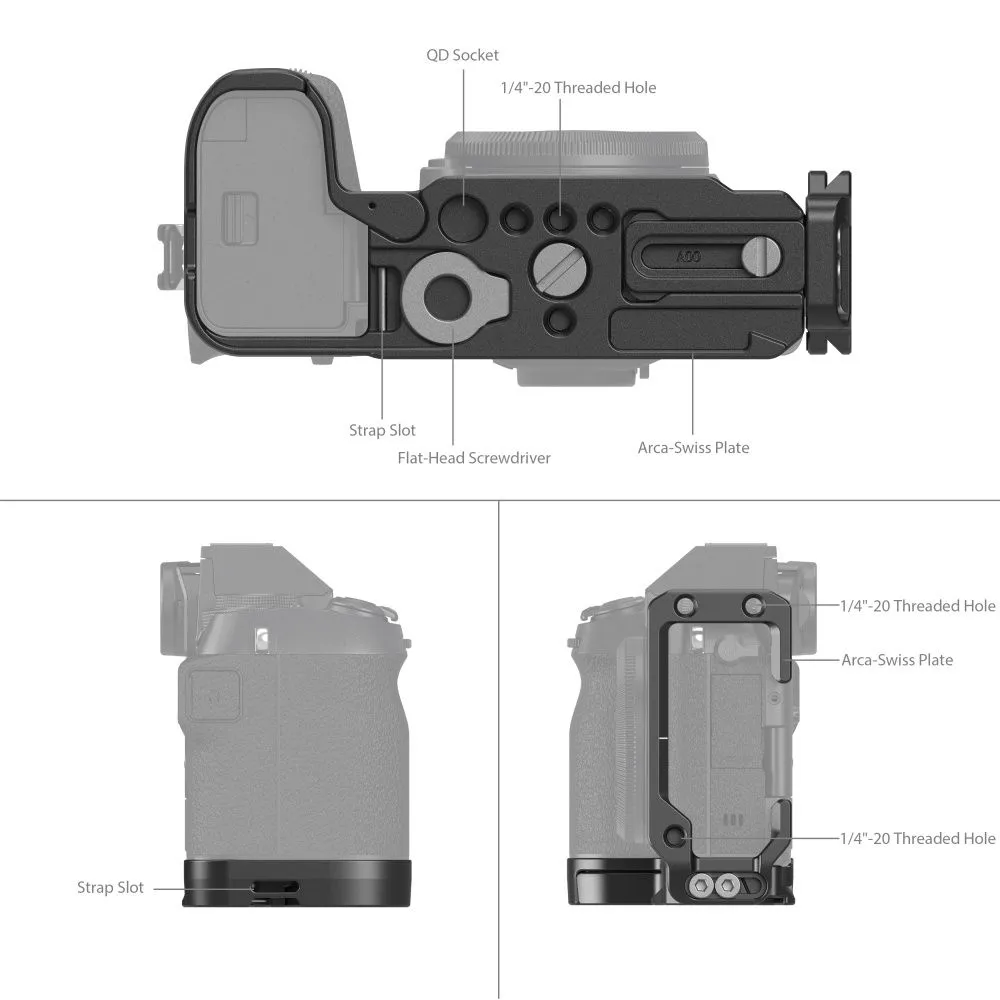

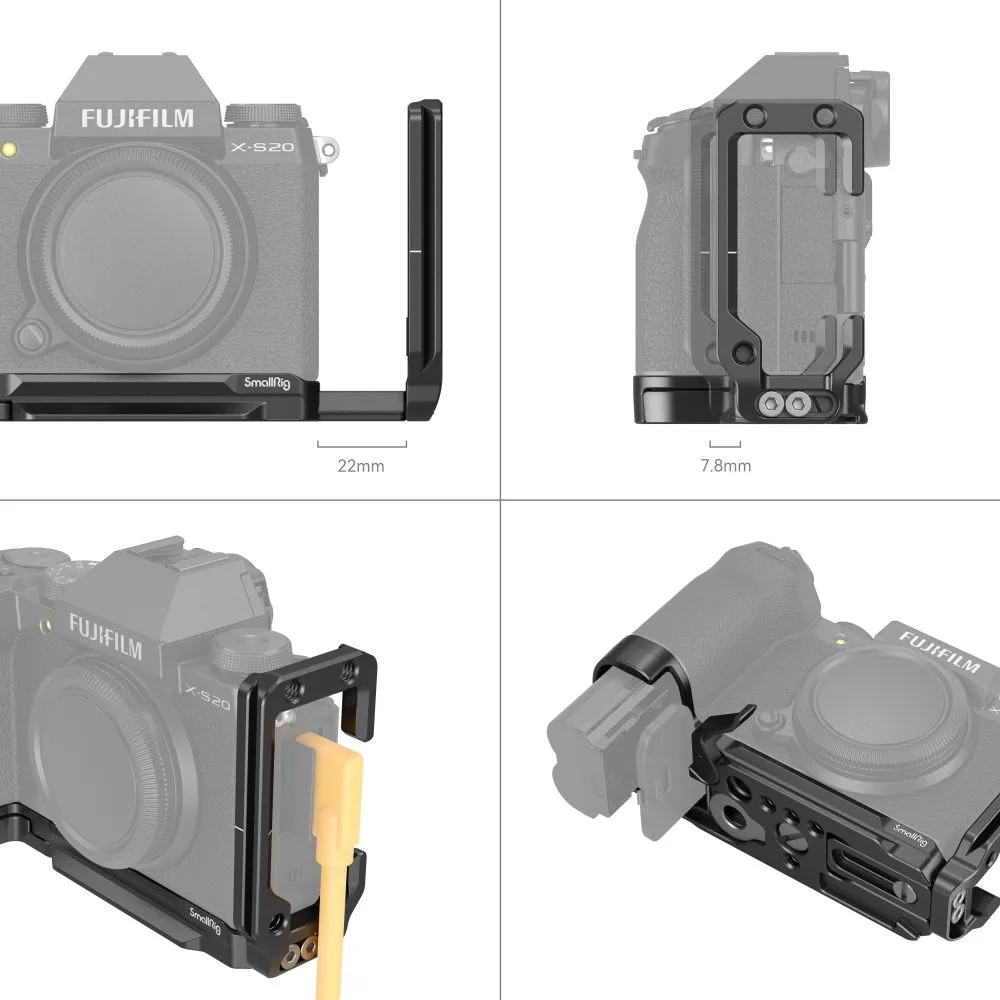

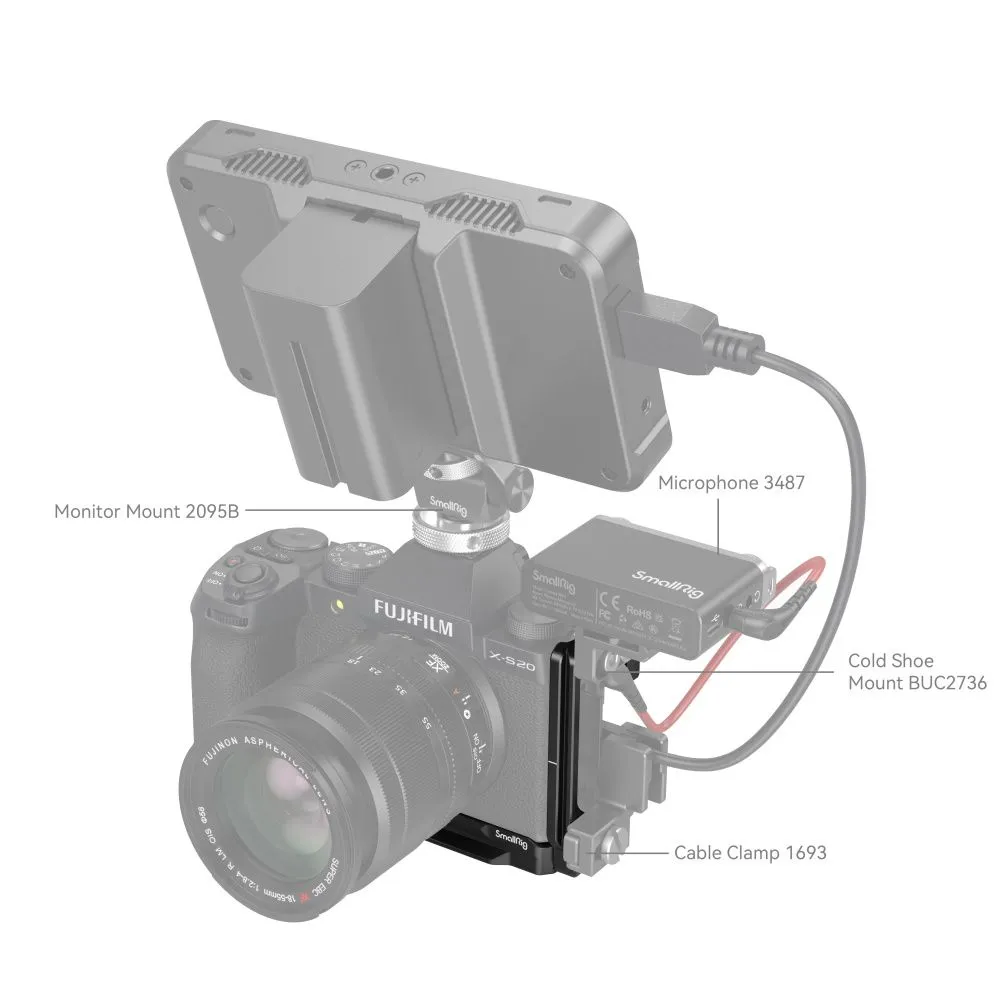

Designed to facilitate a switch between horizontal and vertical shooting and to improve grip feeling. Locking FUJIFILM X-S20 via one 1/4 "-20 screw at the bottom, the mounting plate comes with rubber pads that prevent scratches, and a hinge arm at the battery door that fits the camera curve for comfortable grip. The product consists of Arca Swiss bottom plate and a side plate. On the bottom plate, there are Arca Swiss quick-release plates for Arca-type tripods or DJI RS 2 / RSC 2 / RS 3 / RS 3 Pro gimbals, 1/4 "-20 threaded holes to support Side Handle 2093 & 3847 in vertical shooting, also Quick Release Plate 1280; strap holes for Hand Strap 3848 & 2456, and built-in QD mounts on the bottom for QD strap buckle. On the side plate, there are 1/4"-20 threaded holes for Cold Shoe Mount BUC2736 for the microphone. The side plate supports HDMI Cable Clamp 1693 for stable data transmission and also can be stretched 22mm to allow cables during vertical shooting. It can also adjust back and forth by 7.8mm to enable a 180-degree opening and 120-degree rotation of the LCD flip screen. Besides, a magnetic Allen wrench is included for easy disassembly and assembly.

- Arca-Swiss type bottom plate and side plate, for fast switch horizontal and vertical in tripod shooting mode.
- Comes with a hinge arm at the battery door for a perfect fit of the camera curve and an enhanced grip feeling.

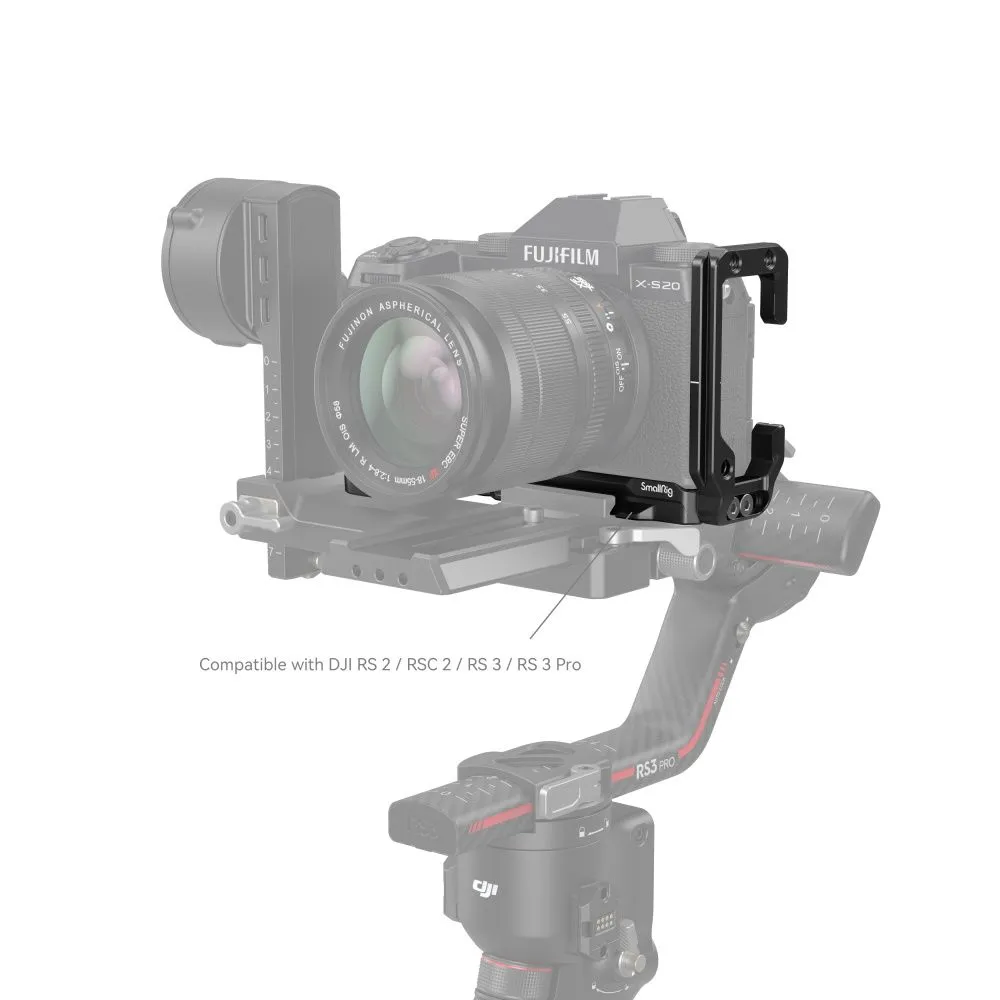

- Features an Arca Swiss quick-release plate on the bottom for Arca-type tripods or DJI RS 2 / RSC 2 / RS 3 / RS 3 Pro gimbals.
- Comes with a stretchable side plate, and gives full access to the ports and cables during vertical shooting.
- Built-in magnetic wrench for easy disassembly and assembly.

Key Features

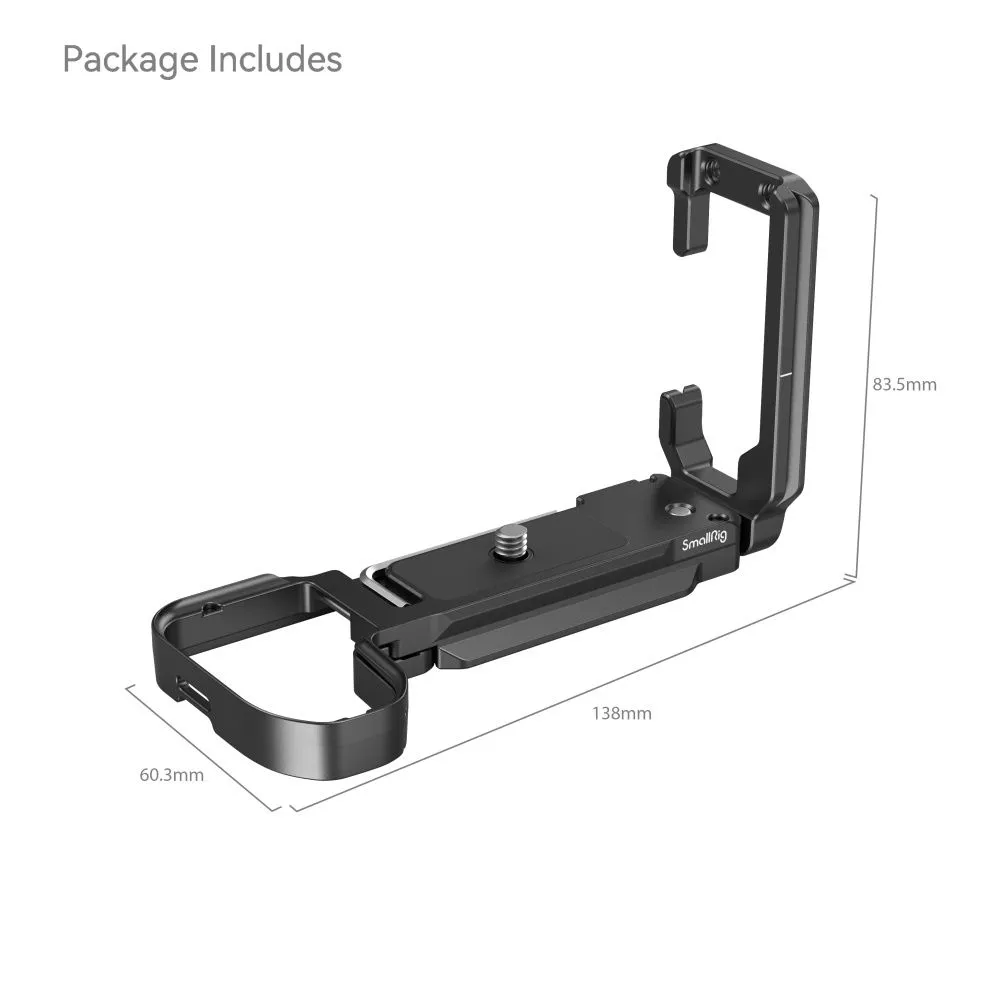

Product Dimensions: 138x 83.5x 60.3mm
Product Weight: 107±5g
Material(s): Aluminum Alloy, Stainless Steel

Compatibility
FUJIFILM X-S20

What’s in the box?
1x L-Shape Mount Plate
